v2PAGE vertical electrophoresis system
for 2 gels
Gel thickness: 0.75, 1, or 1.5 mm
Gel thickness: 0.75, 1, or 1.5 mm
v2PAGE - vertical electrophoresis systems are used to run 1 - 2 or 1 - 4 precast and/or hand cast gels, depending on which model applied.
Models for 2 gels include:
| V2PAGE2G075 | v2PAGE - vertical electrophoresis system for 2 gels, 0.75mm |
| V2PAGE2G100 | v2PAGE - vertical electrophoresis system for 2 gels, 1mm |
| V2PAGE2G150 | v2PAGE - vertical electrophoresis system for 2 gels, 1.5mm |
v2PAGE is compatible with 1D and 2D electrophoresis applications.
|

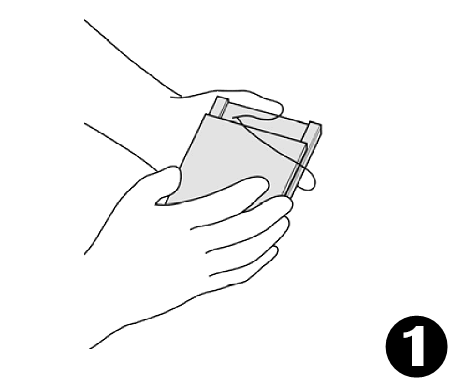

Assemble Gel Caster with v2PAGE ① Place the short glass plate on the bonded glass plate. ② Slide both plates into the casting frame. ③ Close clamps of the casting frame to seal plates together. ④ Place the assembled casting frame into the casting stand. |
|
|

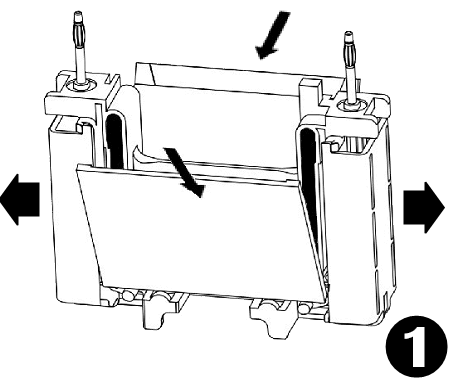

Compose Electrode Assembly with v2PAGE ① Open clamps of the electrode assembly and place 1 gel cassette on each side. ② Gently move cassettes close to each other. ③ Close clamps of the electrode assembly. |
|
★ For the detailed protocol and tips, please check the manual (Attach). ★

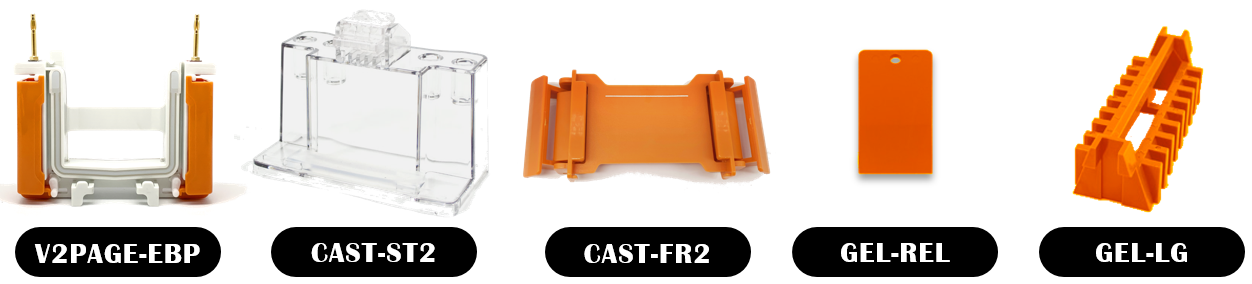

v2PAGE - vertical electrophoresis systems for 2 gels share the same components of:
| Item | Quantity | of Cat. No. |
| vPAGE/v2PAGE/vBLOT2 Lid with Power Cables | 1 | VLID |
| vPAGE/v2PAGE/vBLOT2 Tank | 1 | VTANK |
| v2PAGE Electrode Assembly with Banana Plugs | 1 | V2PAGE-EBP |
| v2PAGE Casting Stand | 2 | CAST-ST2 |
| v2PAGE Casting Frame | 2 | CAST-FR2 |
| v2PAGE Casting Stand Gasket | 3 | CAST-STG2 |
| Short Glass Plate, 10 x 7cm | 5 | SGP |
| Dummy Plate | 1 | DUMMY |
| Gel Releaser | 3 | GEL-REL |
| Sample Loading Guide, 10-well | 1 | GEL-LG |
| Glass Plate Rack | 1 | GPR |
| Centrifuge Tube Rack | 1 | CTR |
Different models of v2PAGE - vertical electrophoresis systems for 2 gels come with different combs and plain glass plates:
| Model | Item |
| V2PAGE2G075 |
3 of #COMB075-10 (Comb of 10-sample, 0.75mm thick) 3 of #COMB075-15 (Comb of 15-sample, 0.75mm thick) 3 of #GP075S (Plain Glass Plate, 10 x 8cm, 0.75mm bonded spacer) |
| V2PAGE2G100 |
3 of #COMB100-10 (Comb of 10-sample, 1mm thick) 3 of #COMB100-15 (Comb of 15-sample, 1mm thick) 3 of #GP100S (Plain Glass Plate, 10 x 8cm, 1mm bonded spacer) |
| V2PAGE2G150 |
3 of #COMB150-10 (Comb of 10-sample, 1.5mm thick) 3 of #COMB150-15 (Comb of 15-sample, 1.5mm thick) 3 of #GP150S (Plain Glass Plate, 10 x 8cm, 1.5mm bonded spacer) |
